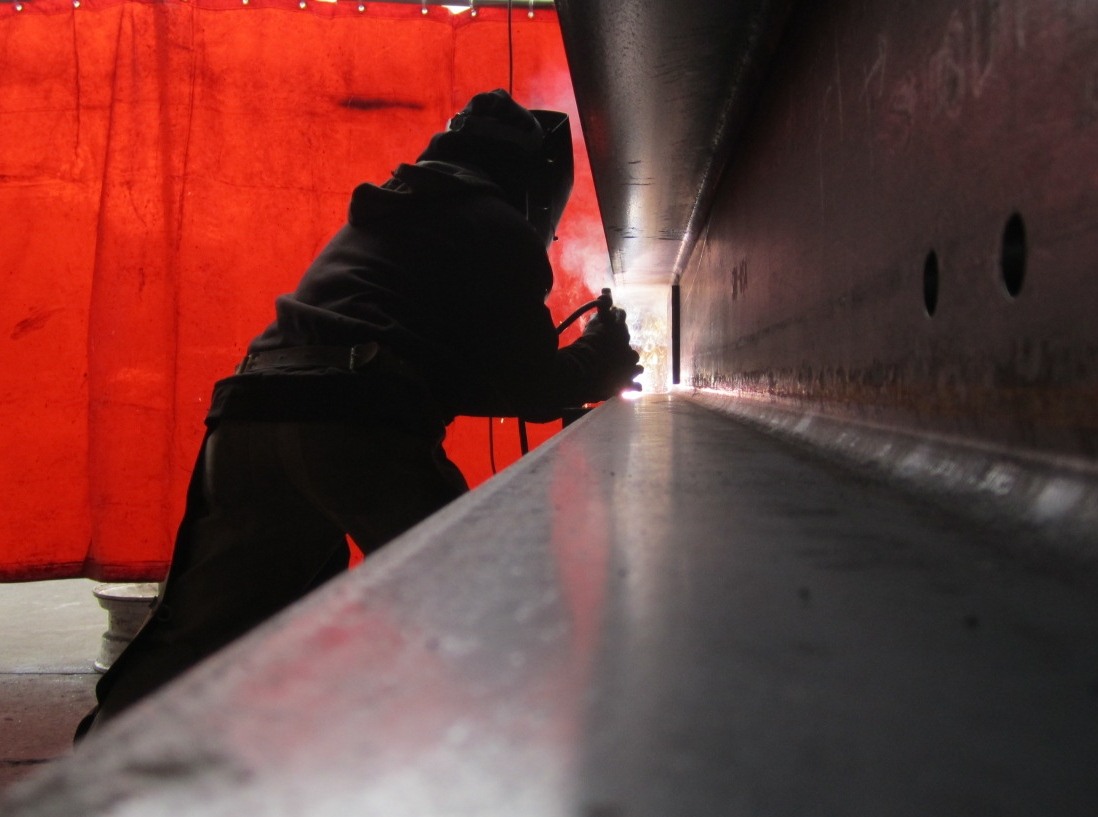

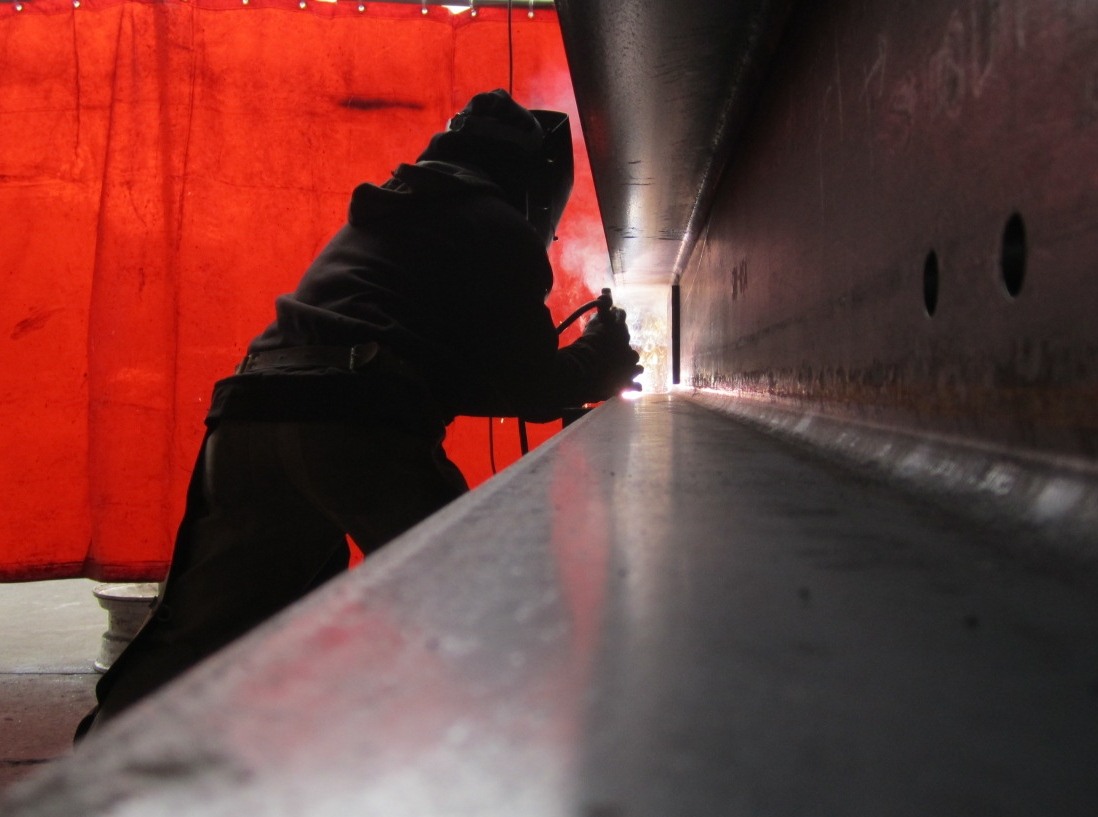

- Our Services. Steve Howell welding gussets inside the WT10x60 tower legs.
-

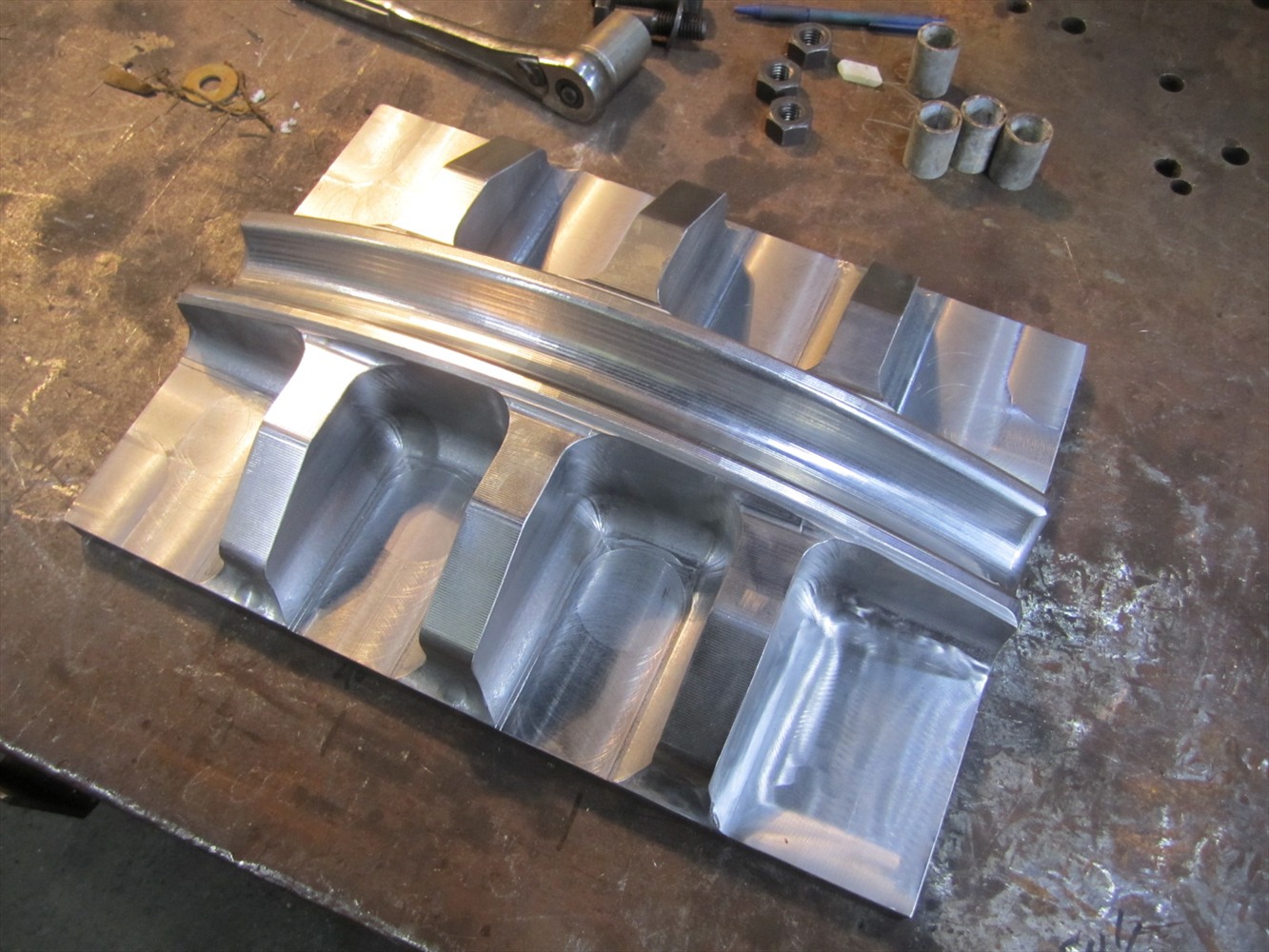

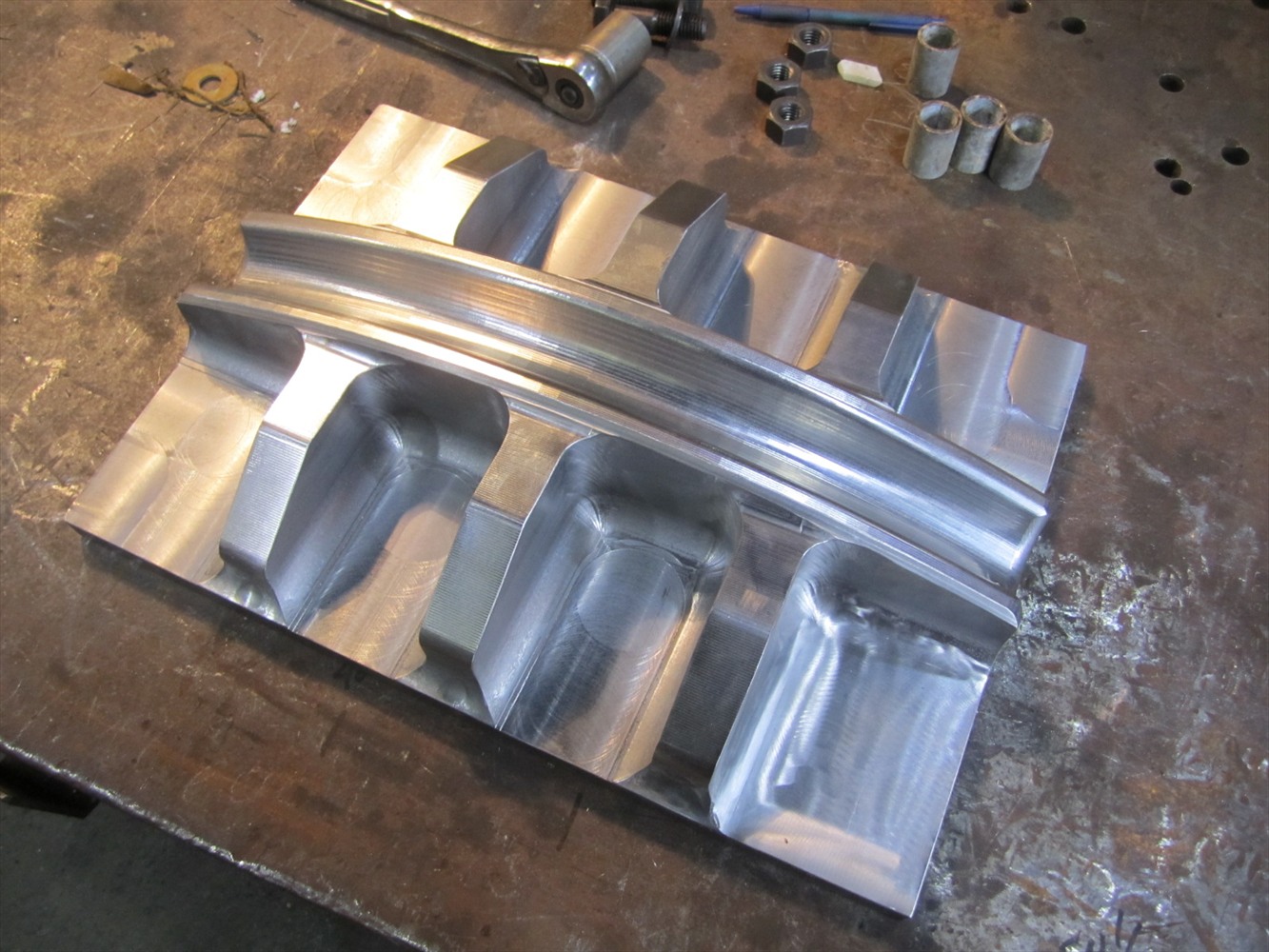

- Bellevue saddles milled from a single block of A588 weathering steel.
-

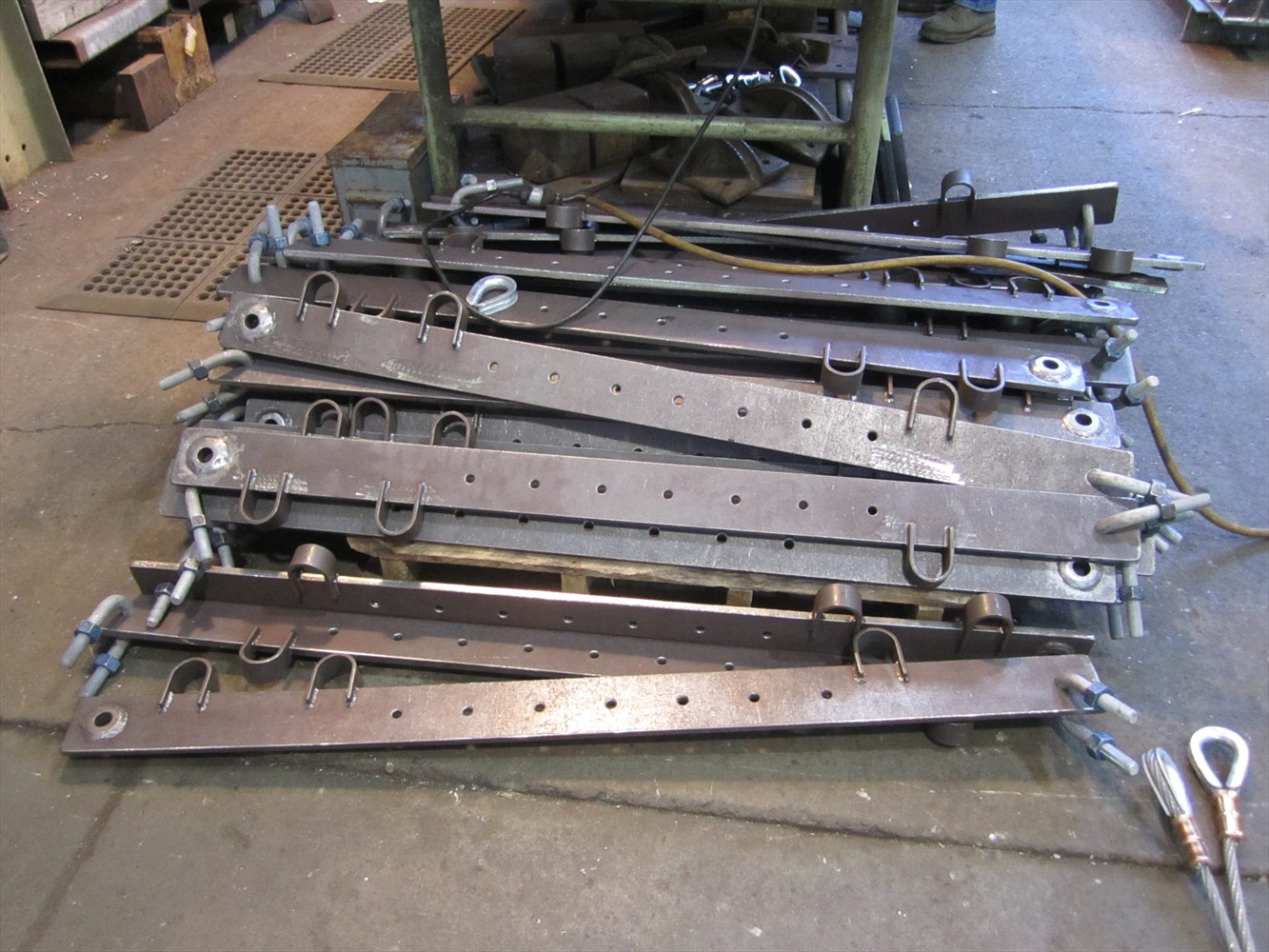

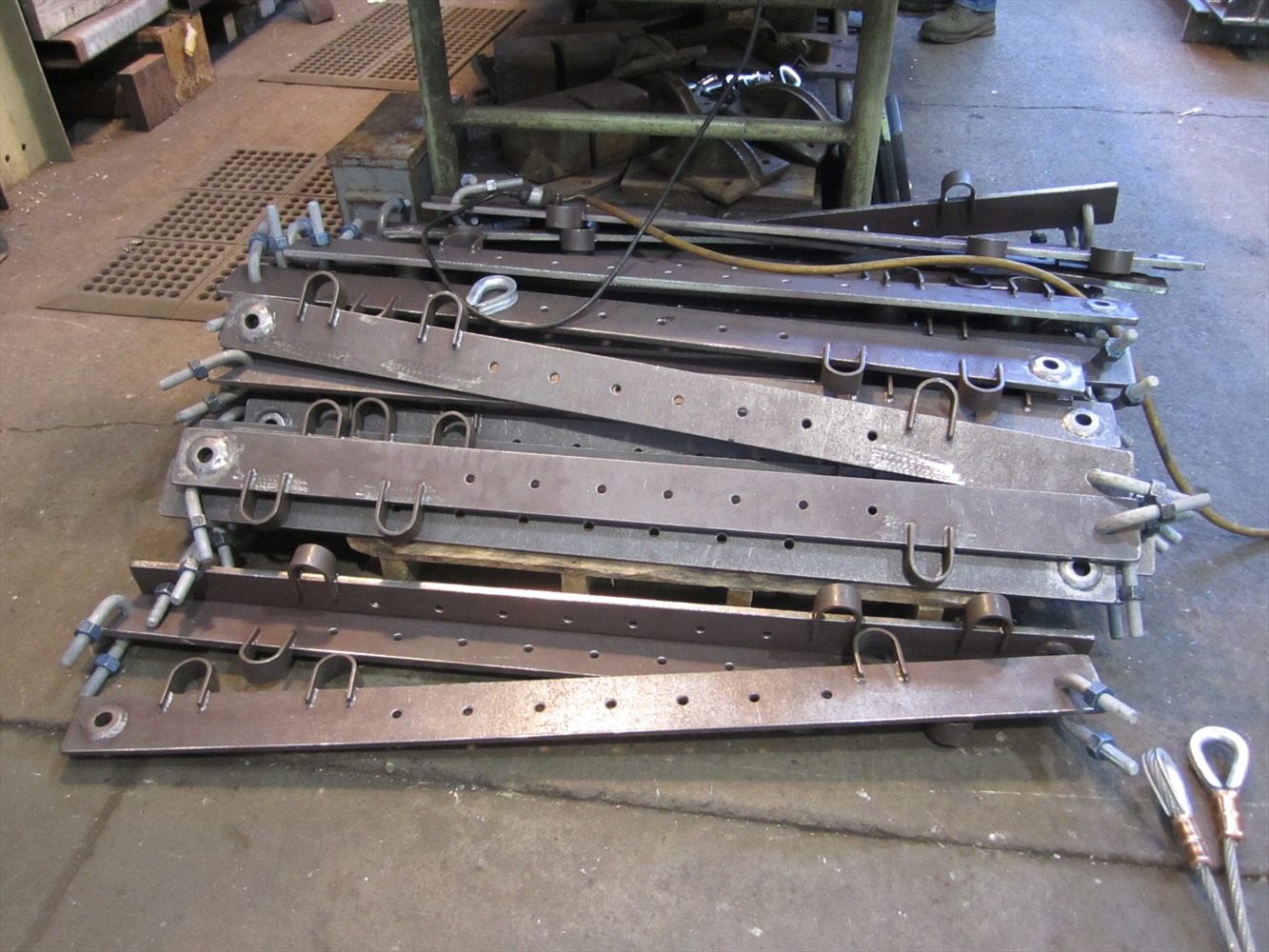

- Bellevue suspender bars fabricated and ready to ship.
-

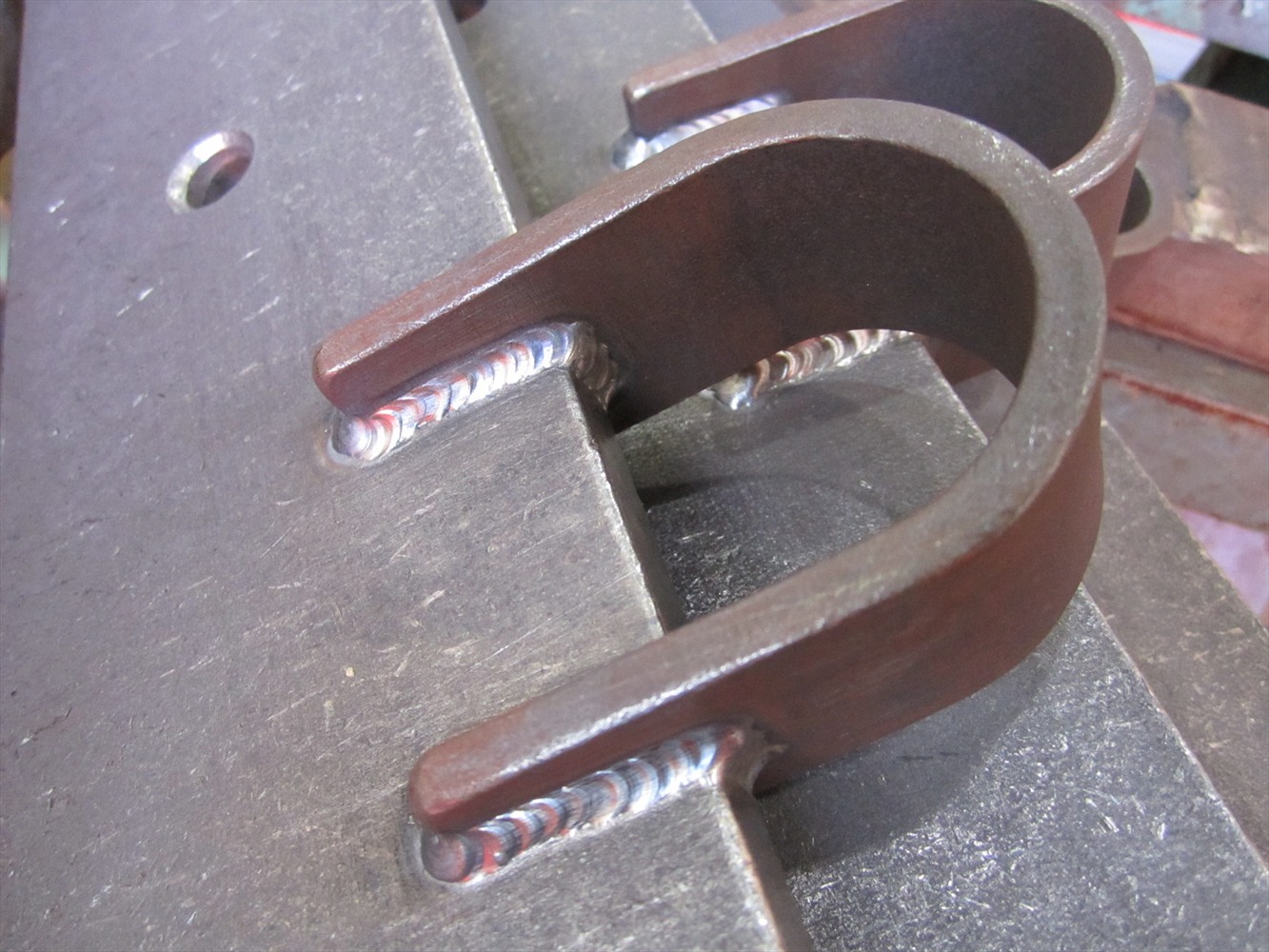

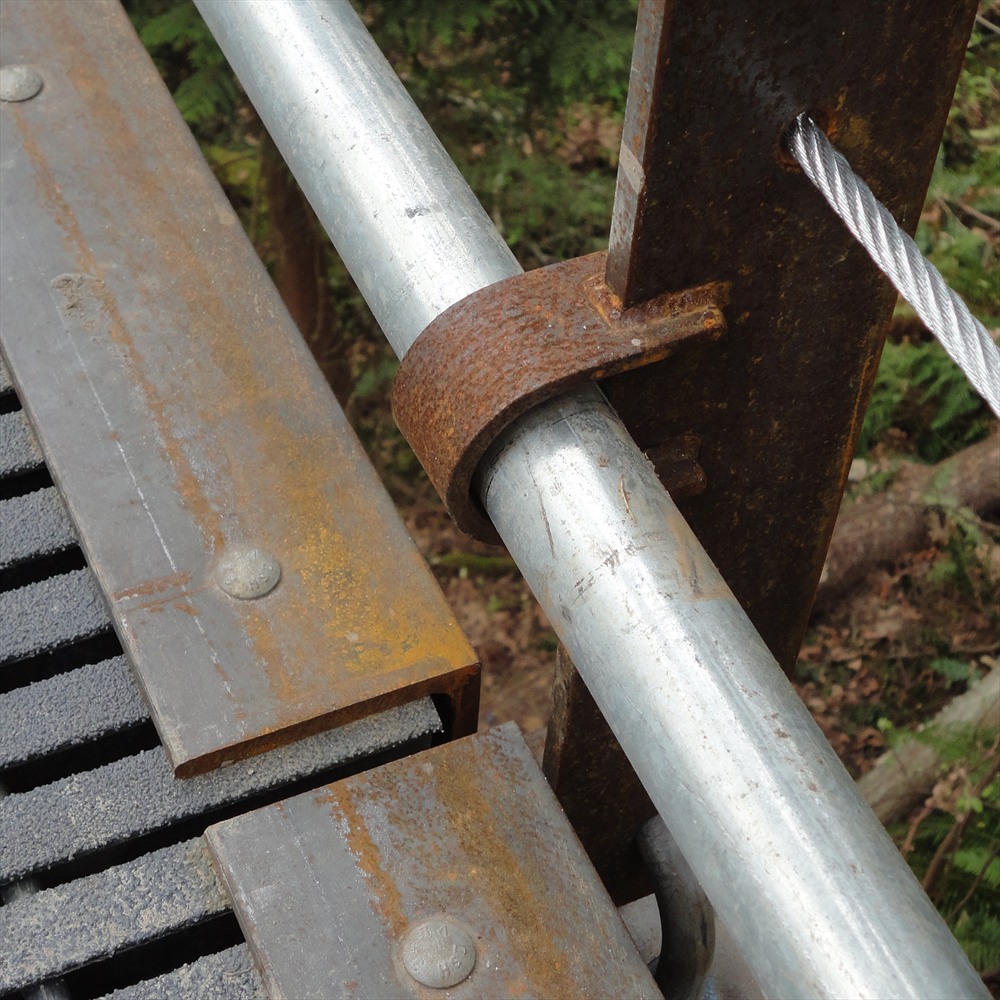

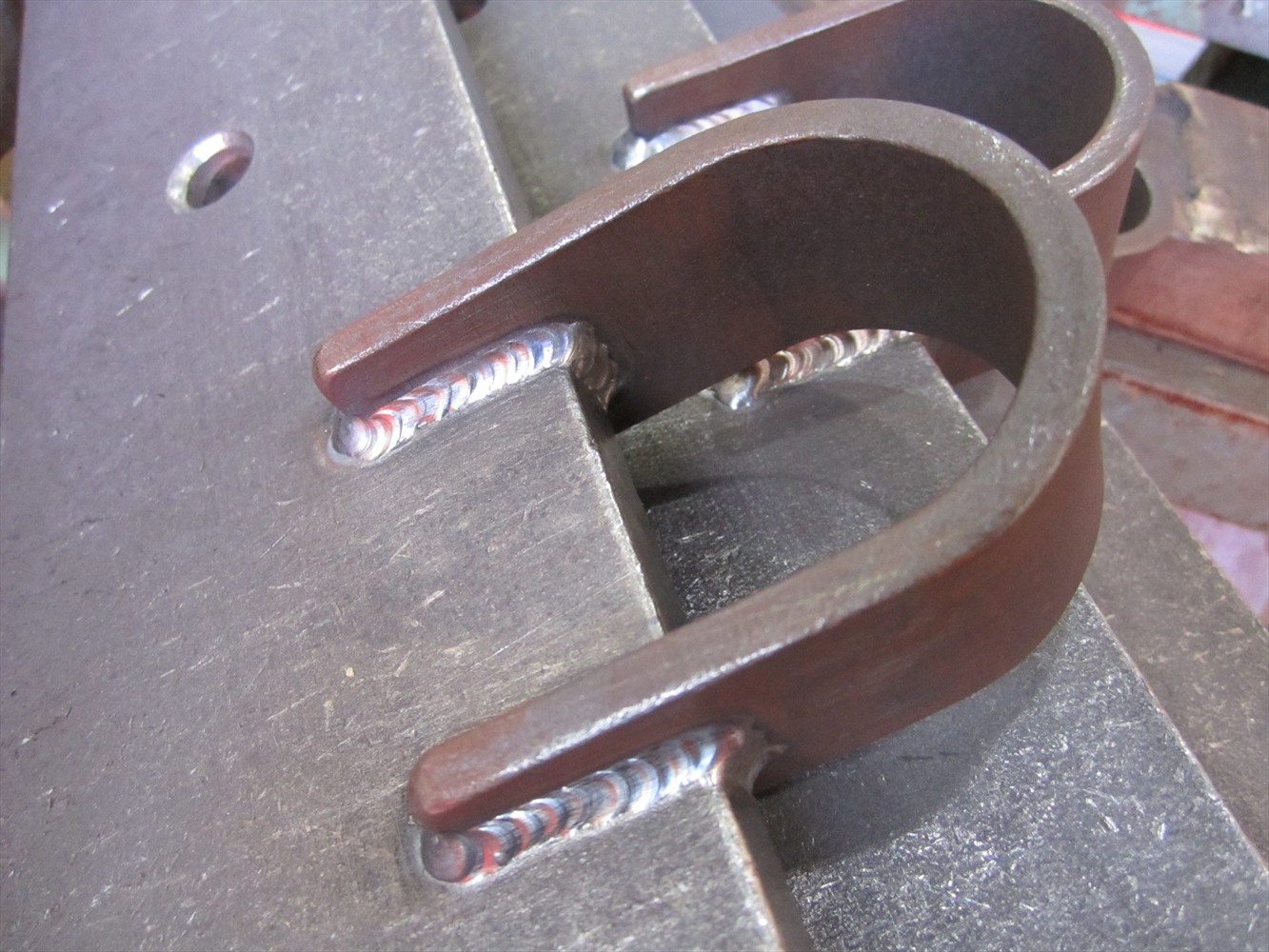

- “Howell Hoops,” hand/kickrail loops integral to the 1/2″ suspender bar.
-

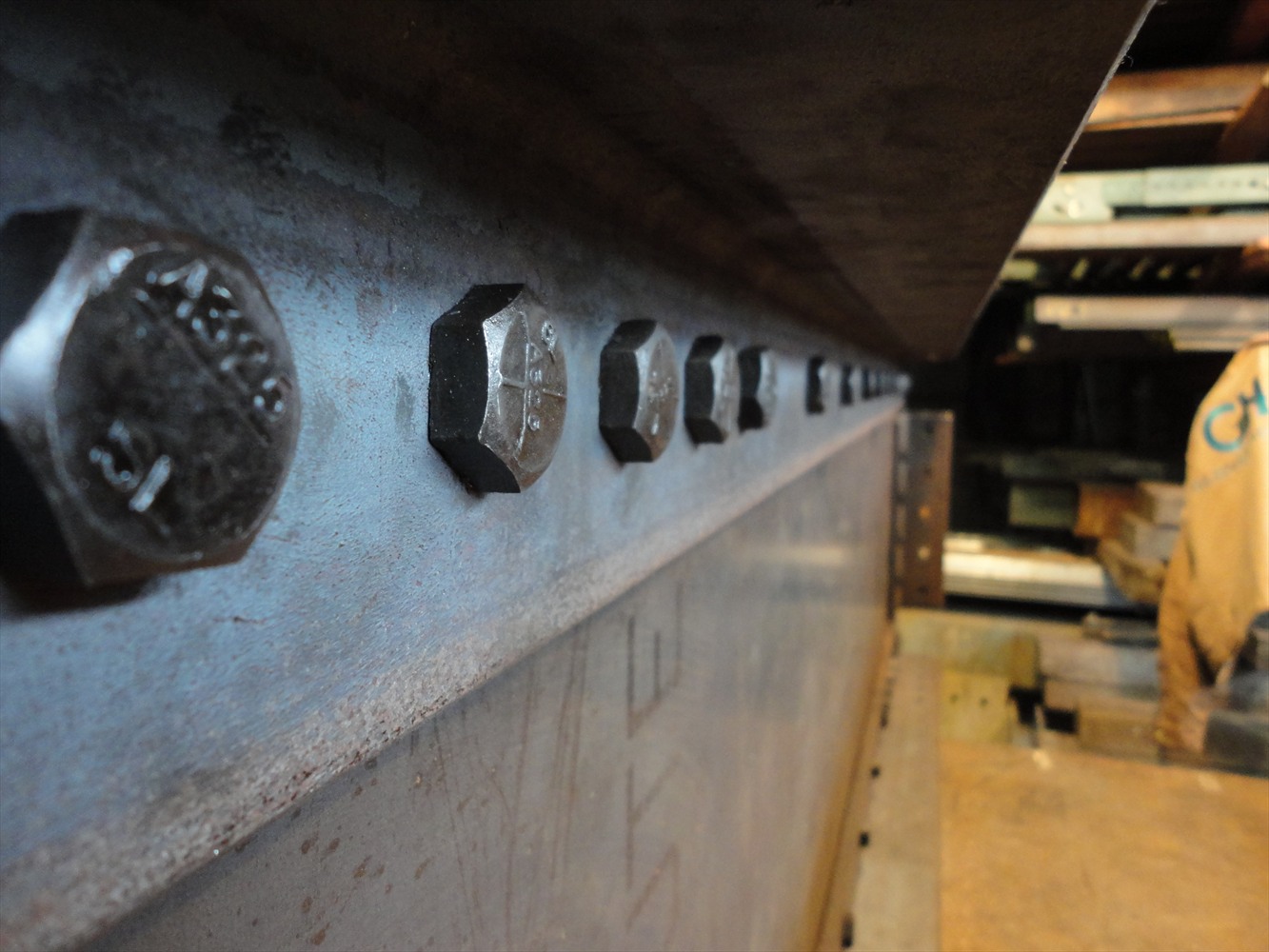

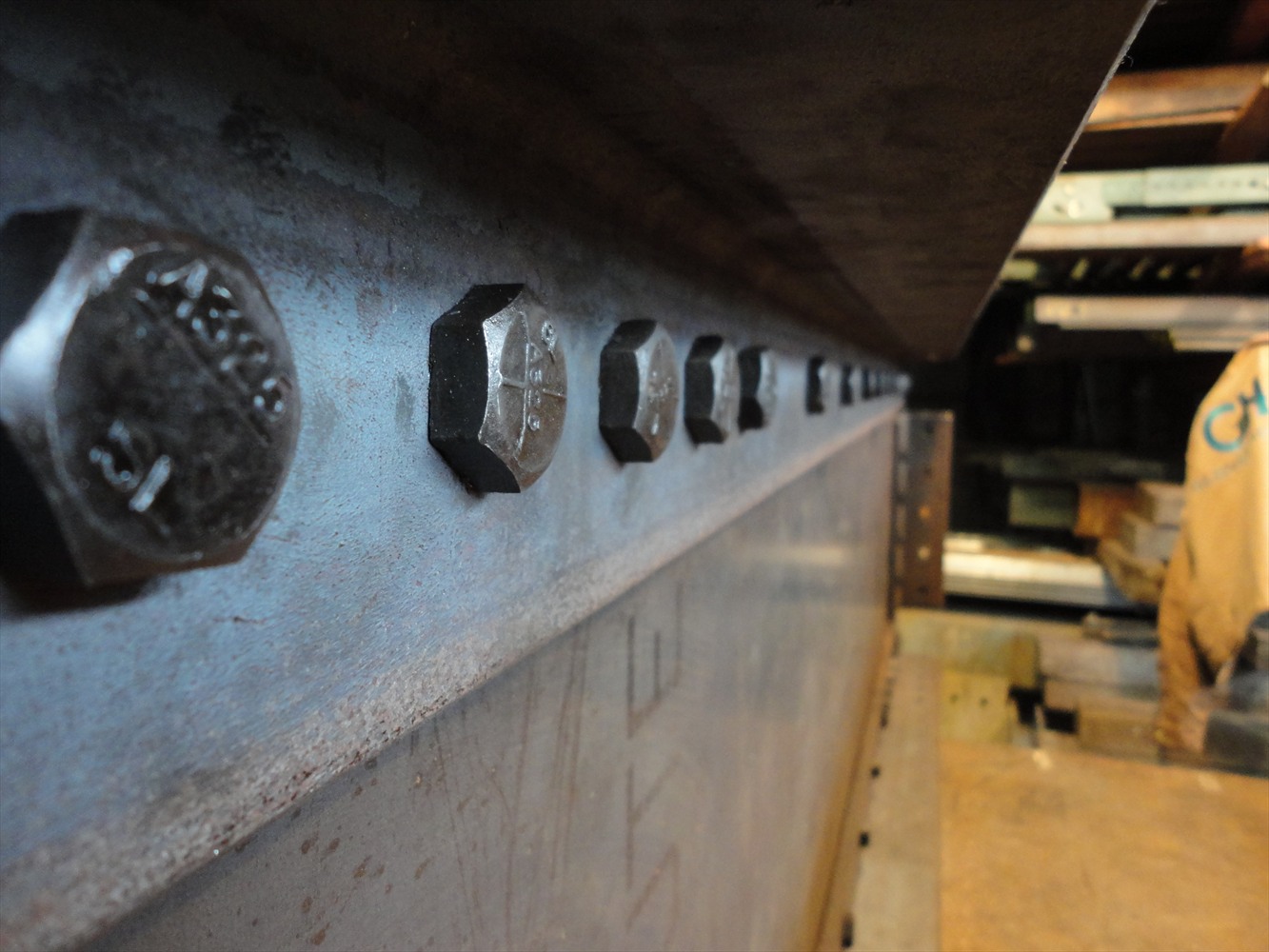

- Built-up I-beam section, used as upper crossbeam for the Bellevue bridge towers.
-

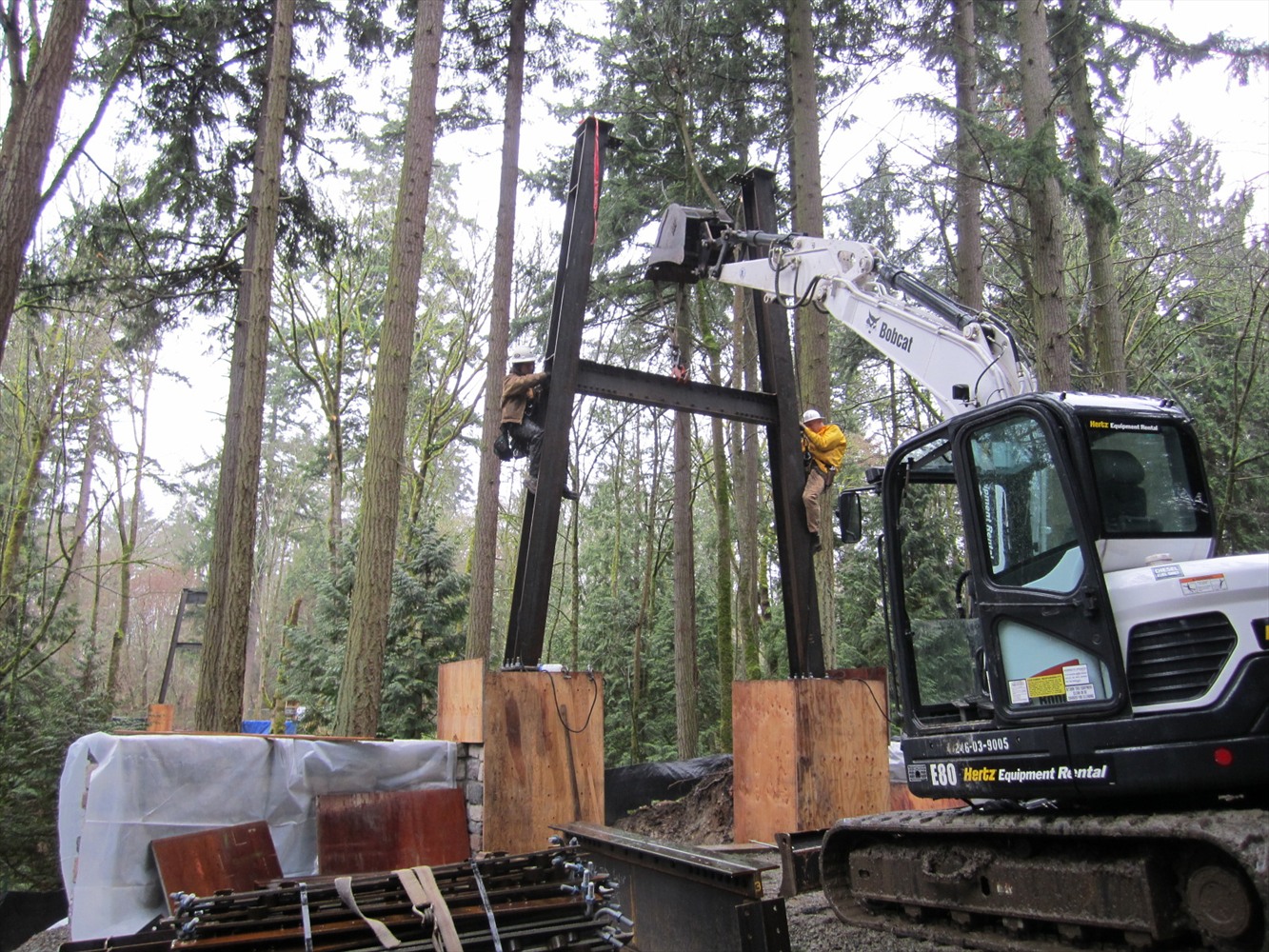

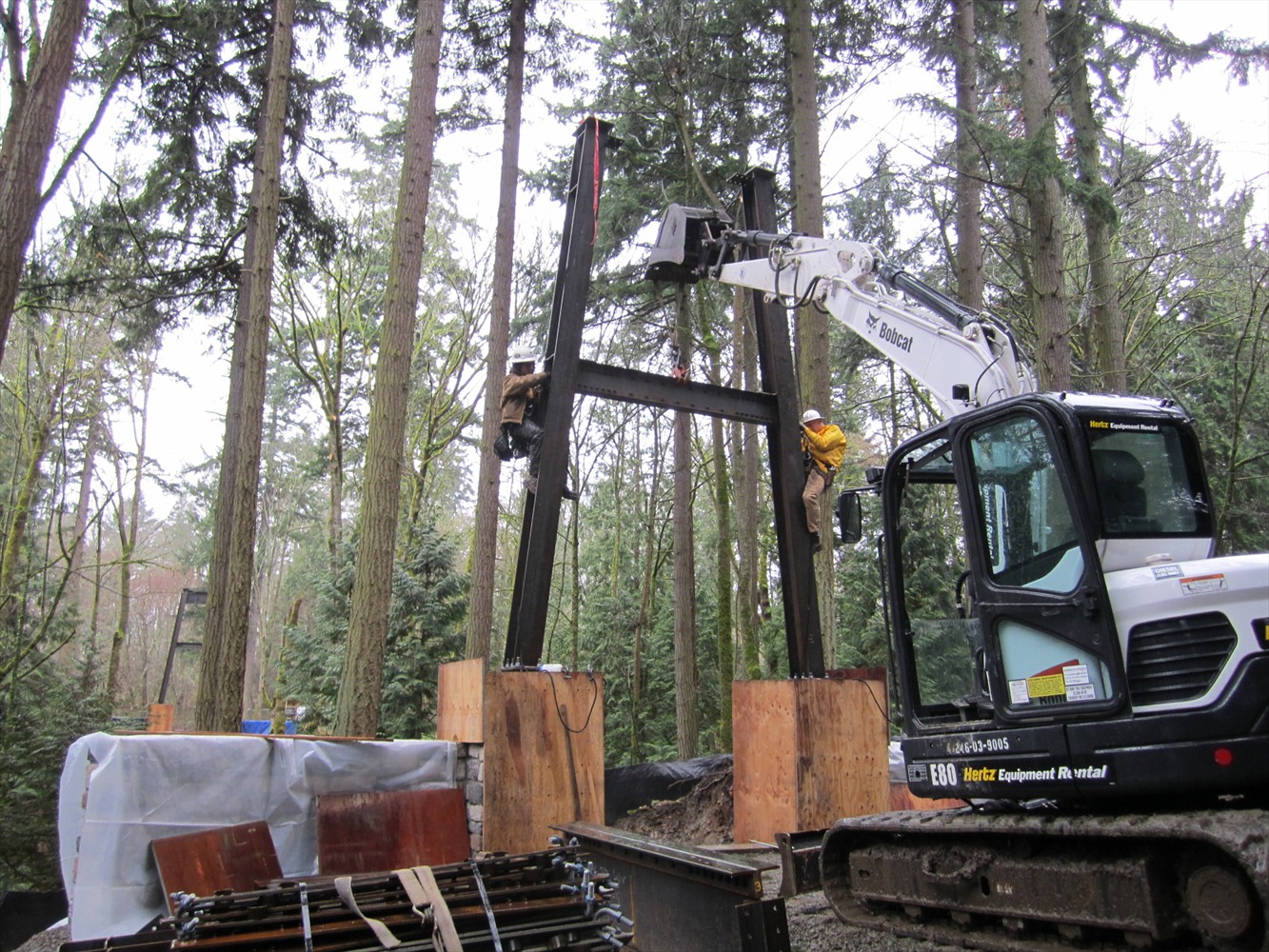

- Bridge towers were raised onto prepared abutments using a small rubber-tracked excavator.
-

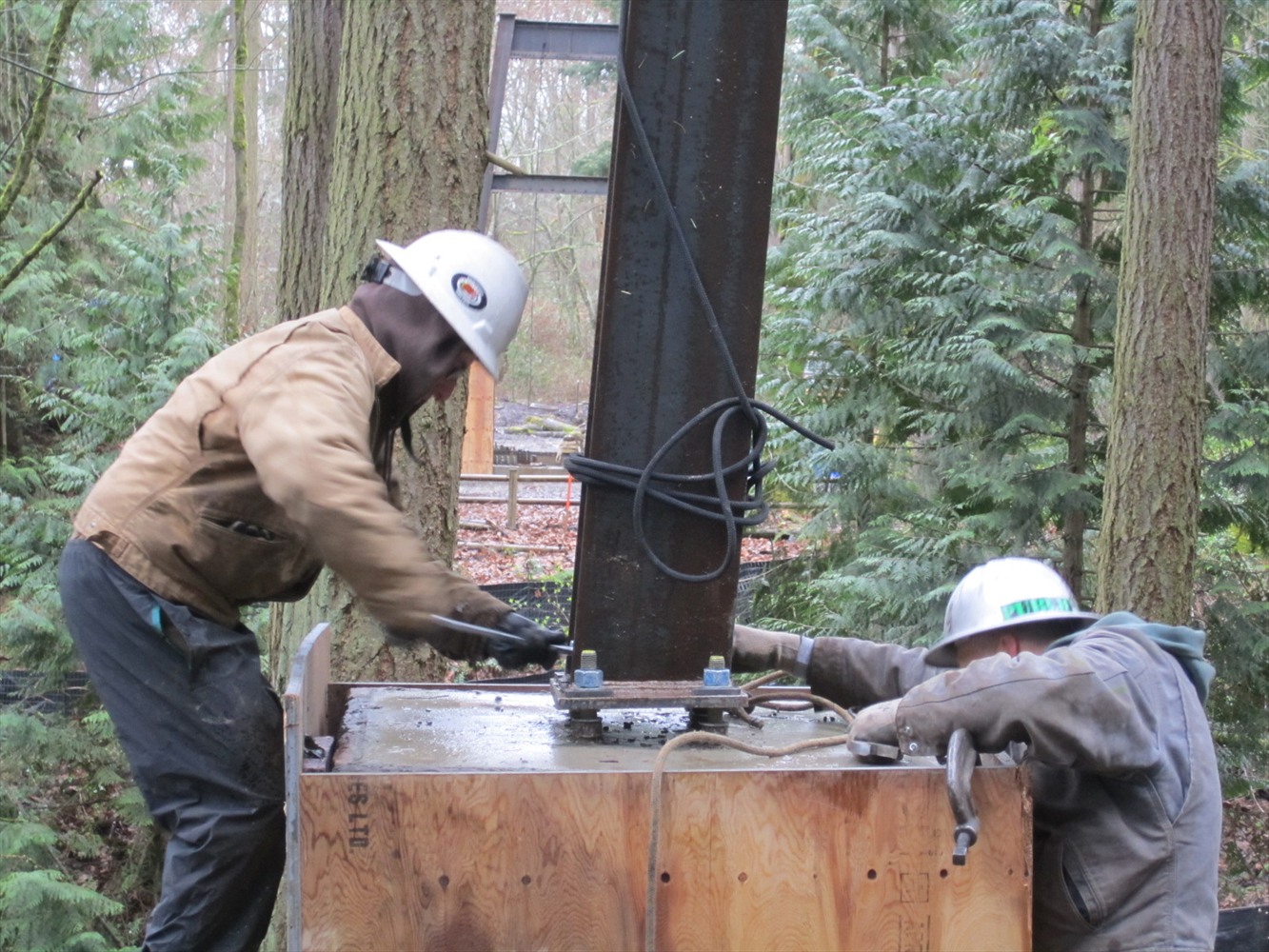

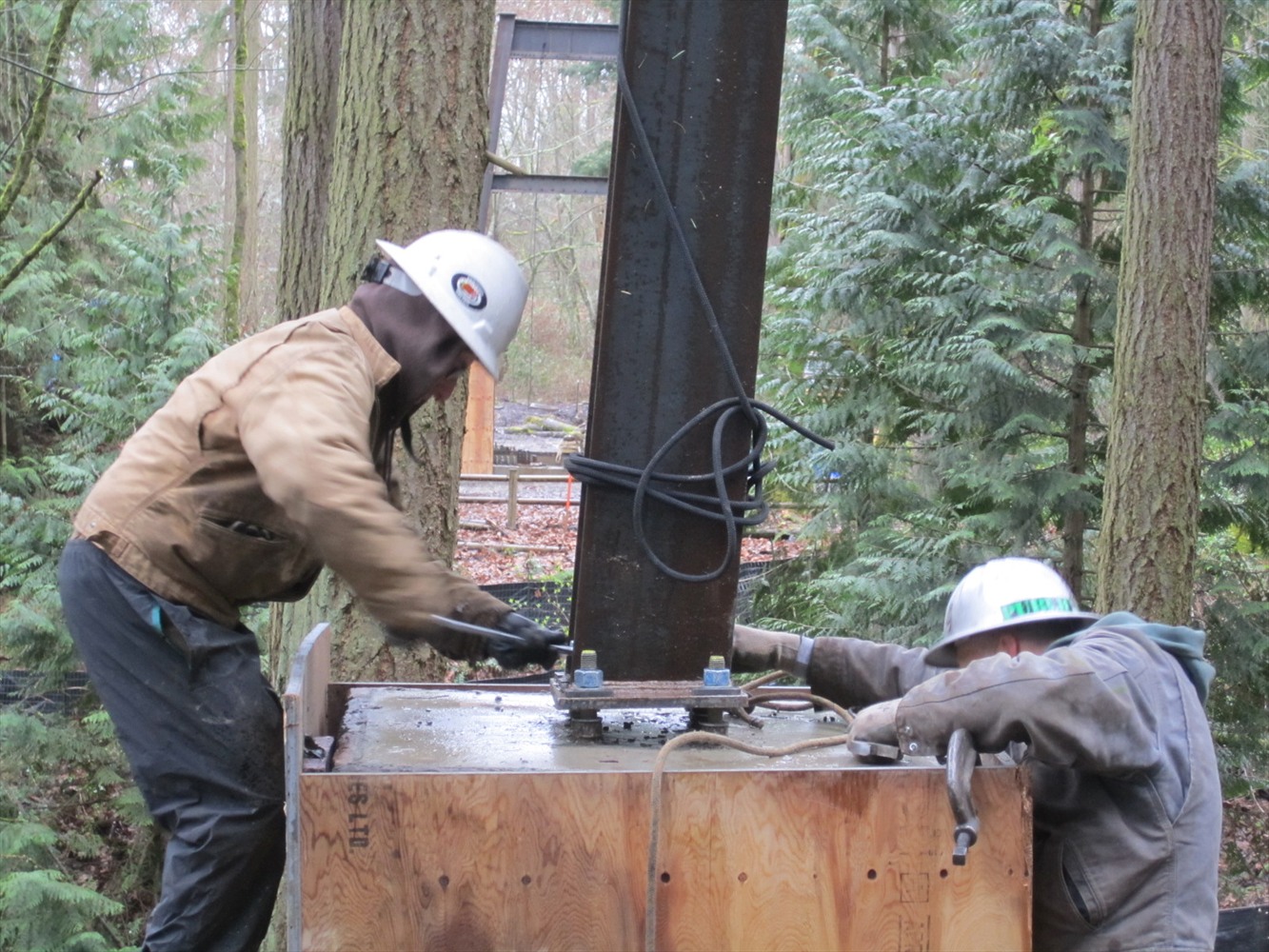

- Steve Howell and Marty Walz plumb one leg of the Bellevue towers
-

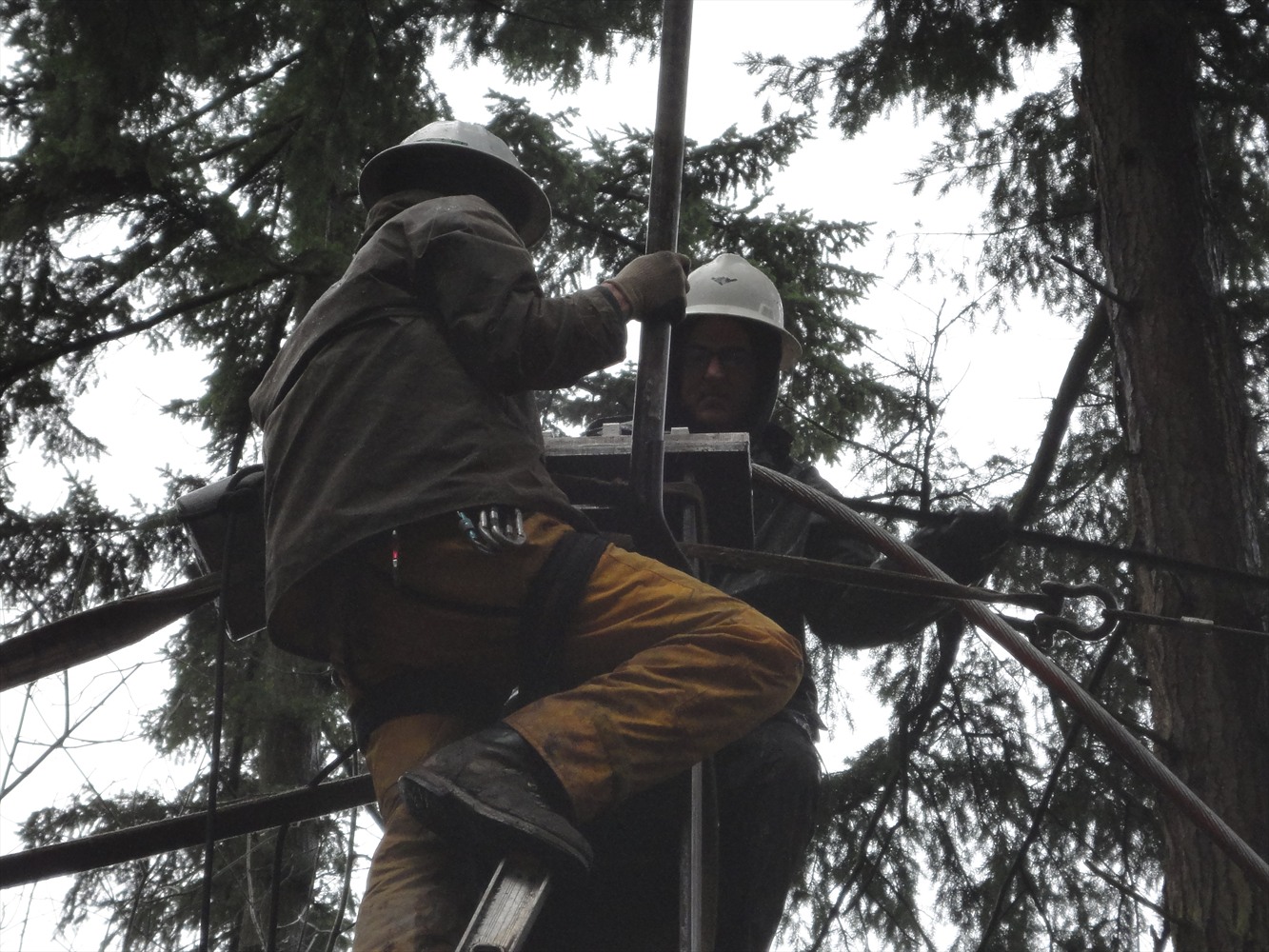

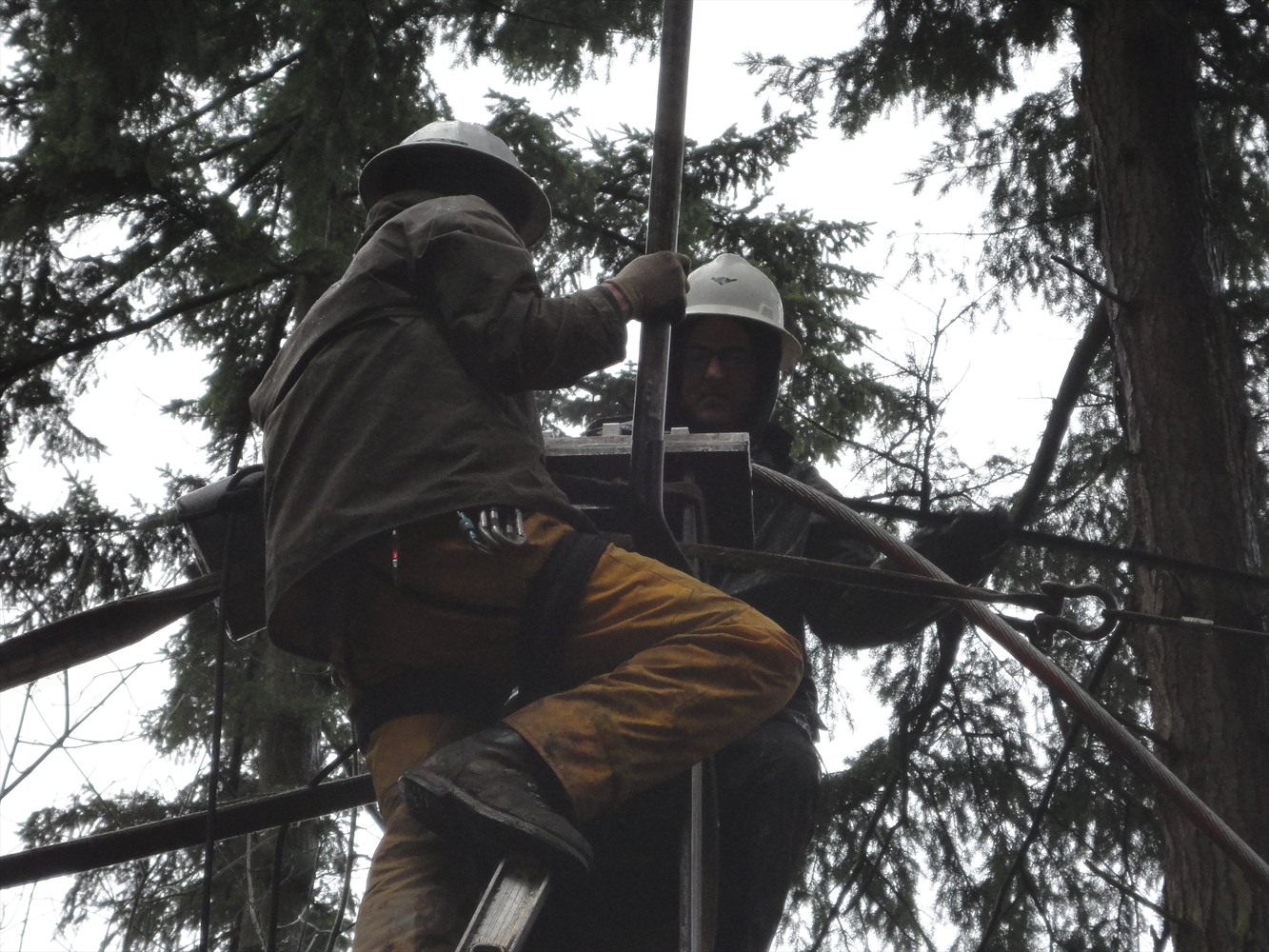

- Marty Walz and Steve Howell wrestle 1-1/4″ mainline cables into their towertop saddles.
-

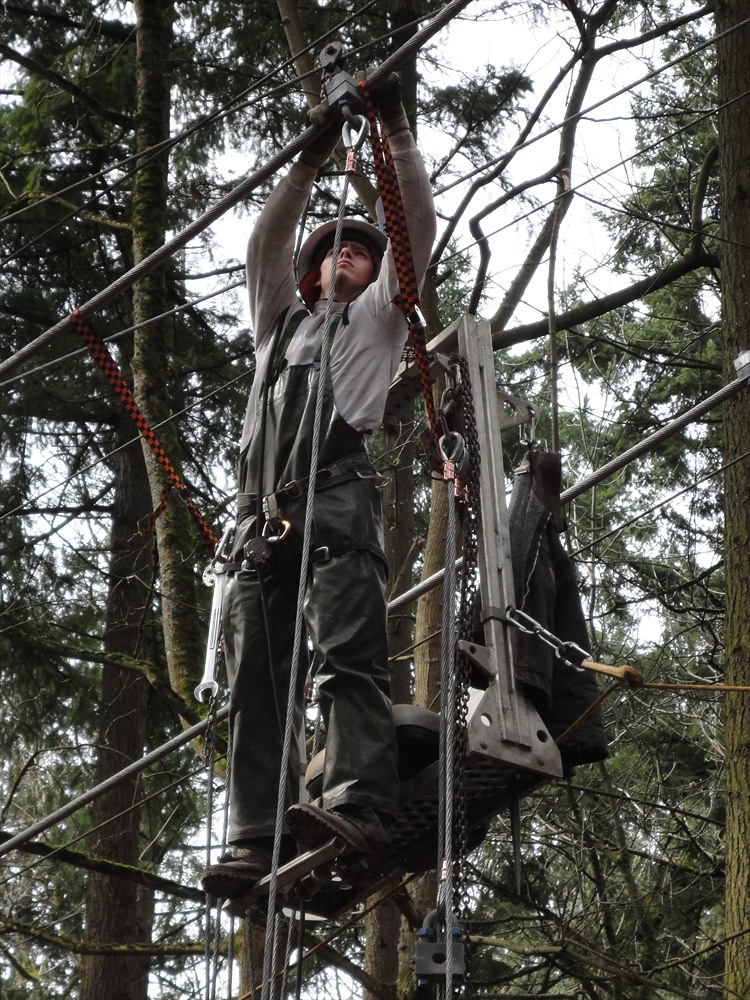

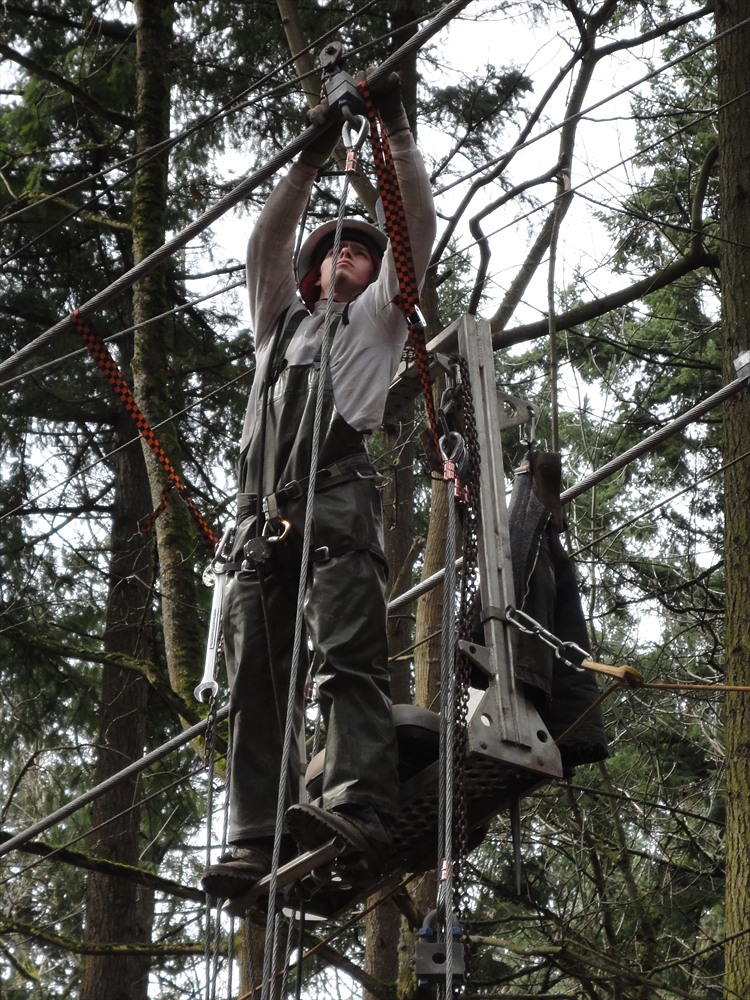

- Austin Thompson, working from the bosun’s chair hung from a skyline, installs mainline cable clips.
-

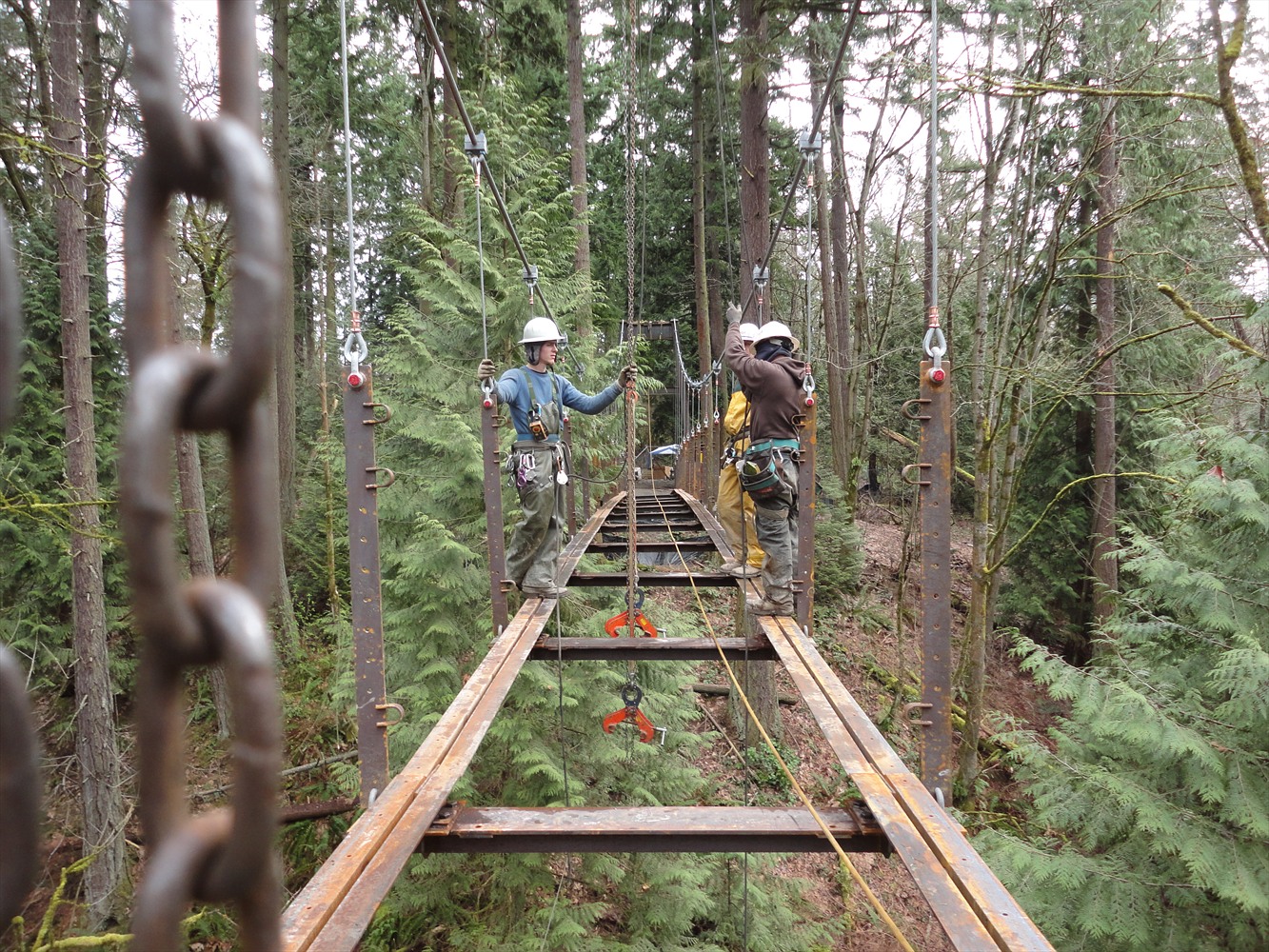

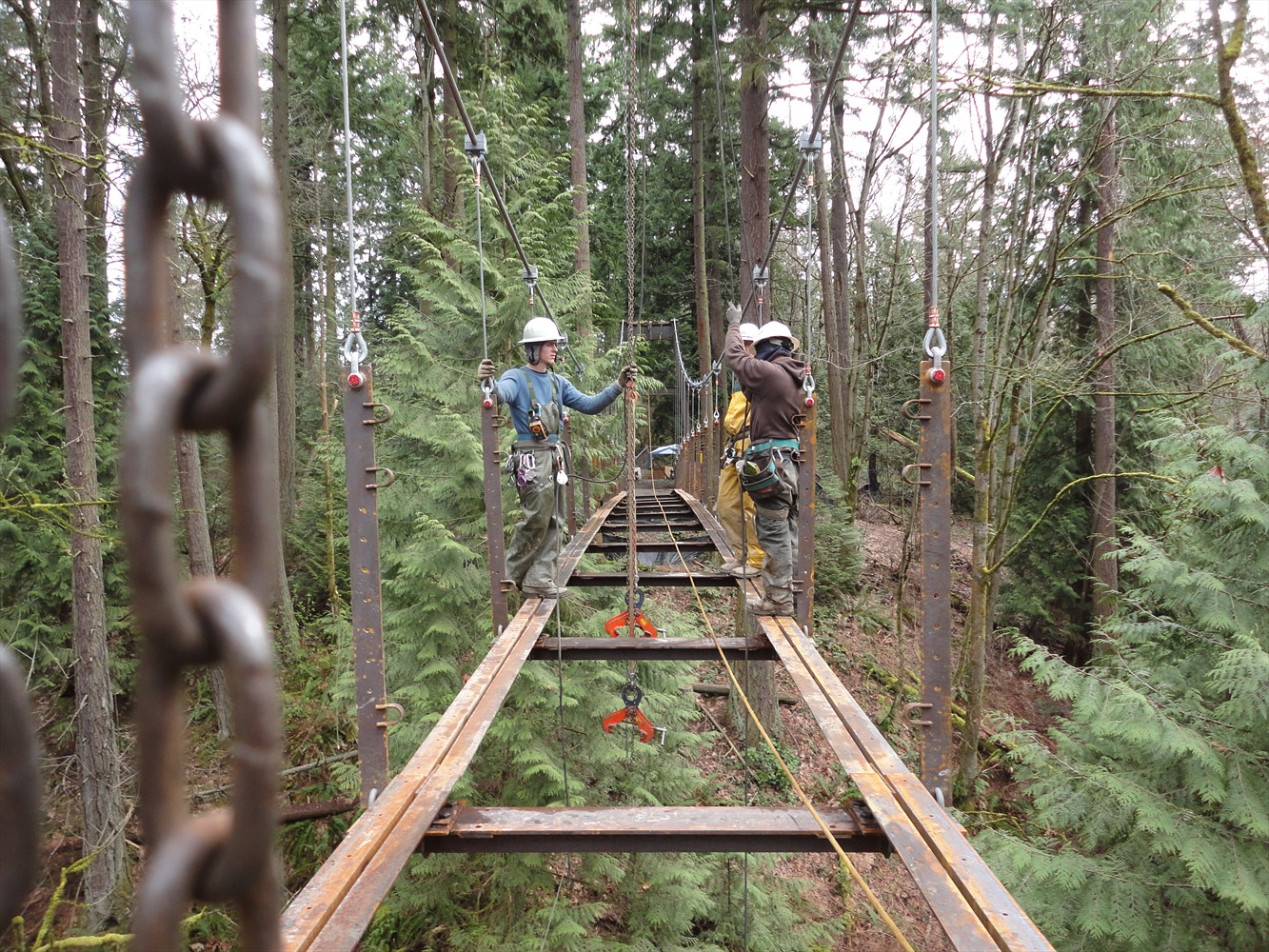

- Stringer circuit is completed across the 152′ span, with last piece of superstructure steel adorned with a fir bough.
-

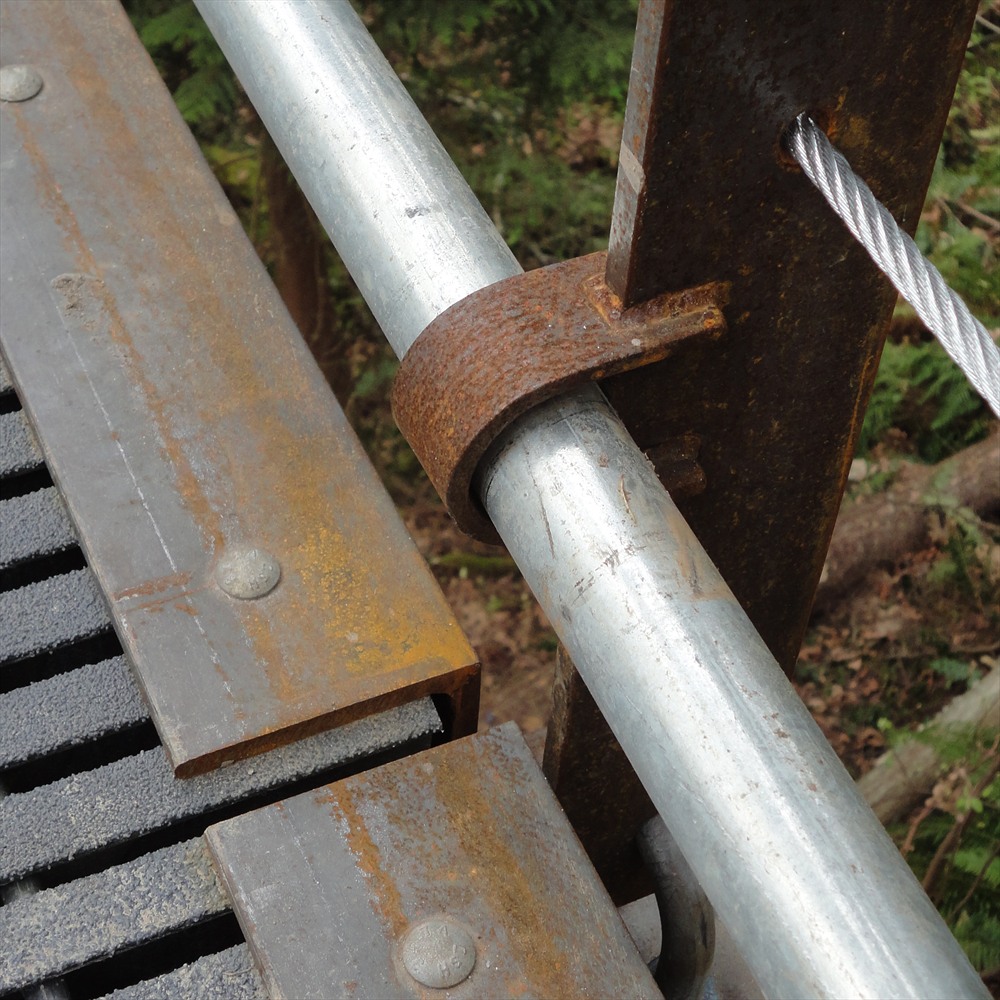

- Typical fixed/pinned stringer connection, featuring suspender bars with integral rails and 1/2″ gapped fiberglass decking pinned in place with angle.
-

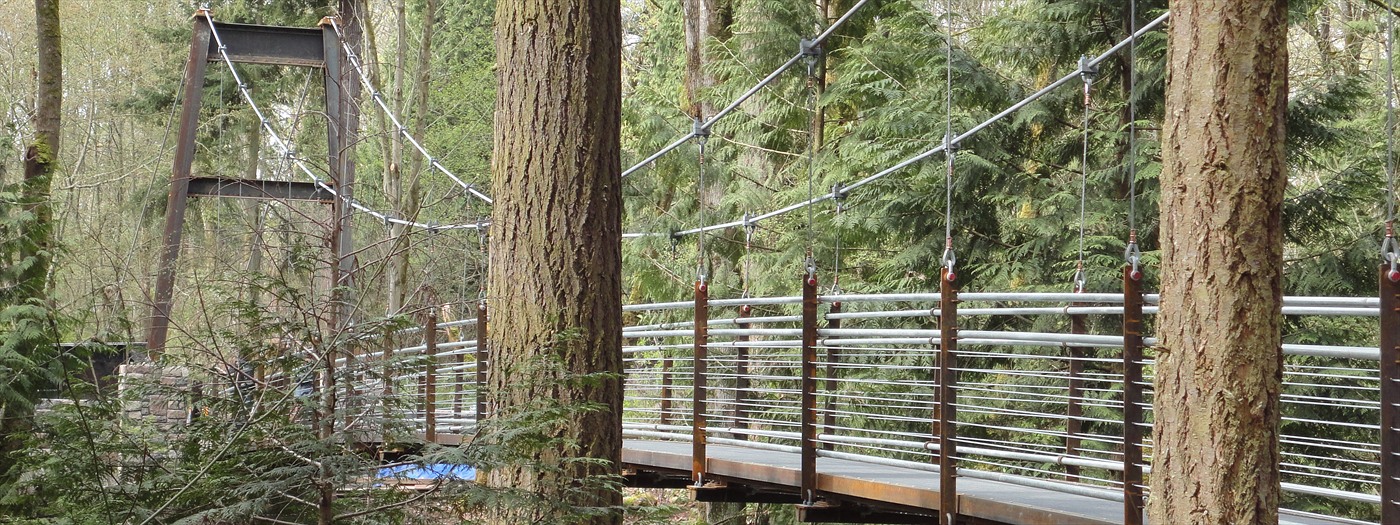

- The Bellevue bridge was completed on schedule and on budget, in time for opening on Mother’s Day 2012.
-

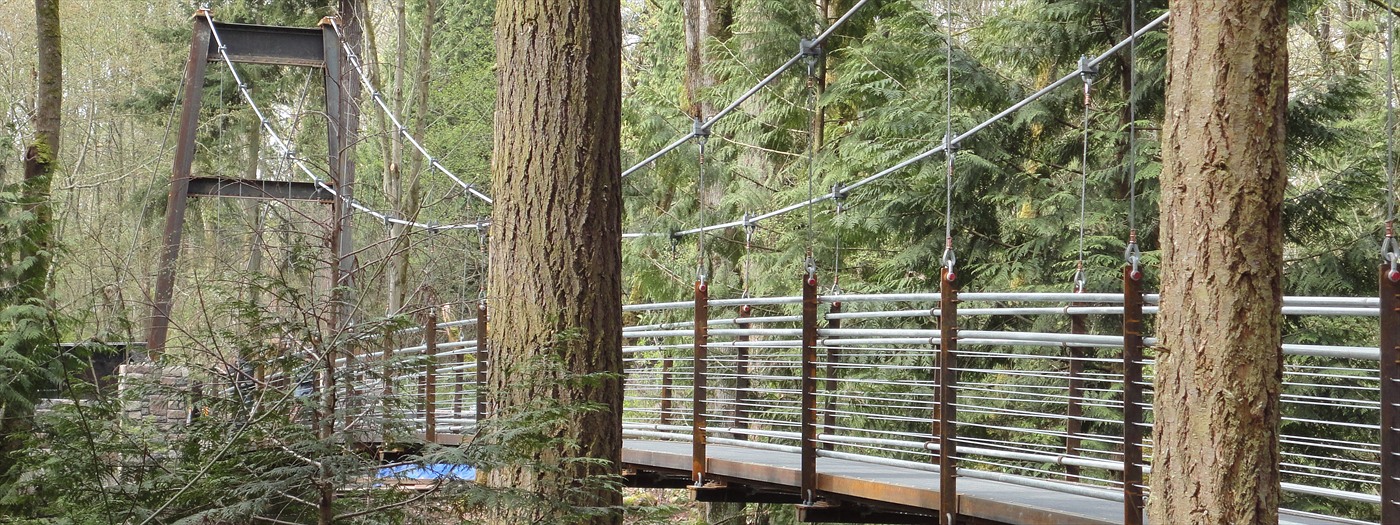

- Bellevue Botanical Suspension Bridge, 2012.
